High definition cut, one step in place.

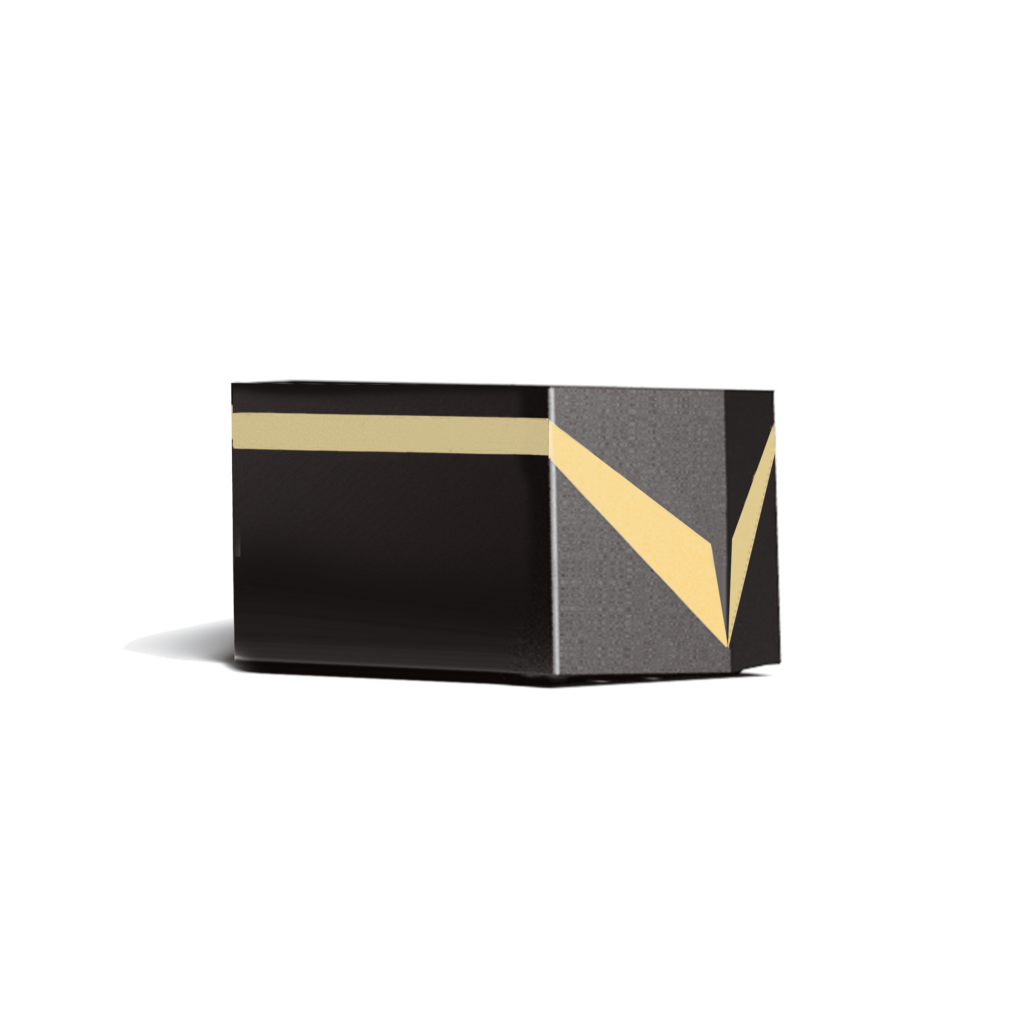

Arcblitz, available exclusively from Arcbro, challenges the concept of the traditional plasma cutting industry. Precise and excellent high definition cut reduce secondary operations, which improves quality while reducing cost. The automatic gas control box greatly reduces the difficulty of operation, and reliance on worker skills.



·Accuracy &  Consistency

Precise cuts deliver tolerances that meet the needs of many industrial applications.The automatic gas control box and the torch that is more in line with the beveling structure greatly improve the beveling accuracy.

·High prolificacy

Arcblitz cuts four times faster than flame cutting. Compared to the 4,000 watt laser on the market, Arcblitz cuts 44% faster on 8mm material and 50% faster on materials 10mm thick and above. And there is no residue on the part, which meets the tolerance requirements for most difficult parts.



·Cost reduction

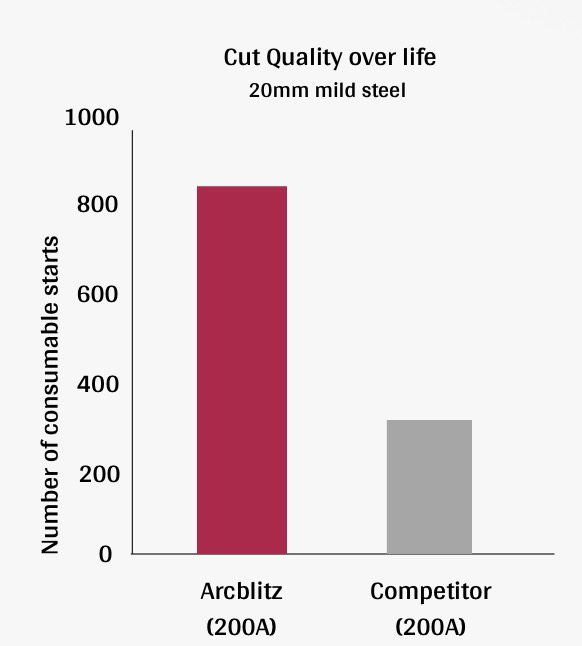

On the one hand, powerful perforation technology allows you to penetrate thicker plates than before. It replaces flame cutting technology with faster cutting speeds and better cutting quality. On the other hand, the cutting quality comparable to lasers reduces the cost of secondary processing. Above these, Arcblitz’s own consumable life is much greater than ordinary air plasma power.

·Wide applicability

Cuts, bevels, and marks carbon steel, stainless steel, aluminum, and other metals with HyDefinition precision.Modular system design allows easy power supply upgrades to increase system capabilities when requirements change



·Reliable production process

Independent factories have passed a number of international certifications. Excellent manufacturing standards and extensive testing ensure that every plasma power source meets high quality standards.

power supply	Three-phase AC380V±10%
Rated input current	62A
Input breaker rated current	≥100A
Gas source	Air, oxygen, nitrogen, argon
Maximum no-load voltage	311V
Rated output current	200A
Rated operating voltage	165V
Current adjustment range	15A ~ 200A
Arc ignition mode	High frequency and high voltage arc ignition
maximum cuttting thickness	50mm
recommended cutting thickness	5mm-20mm
Load continuation rate	100%
Efficiency η	≥0.8
COSφ	0.98
Insulation class	H
Enclosure rating	IP21S
weight	600KG (main power supply only)
Static characteristics	Falling characteristic
Transportation promotion method	Forklift
Thermal protection temperature	90 ° C
Operating temperature	-10°C ~ +40°C
