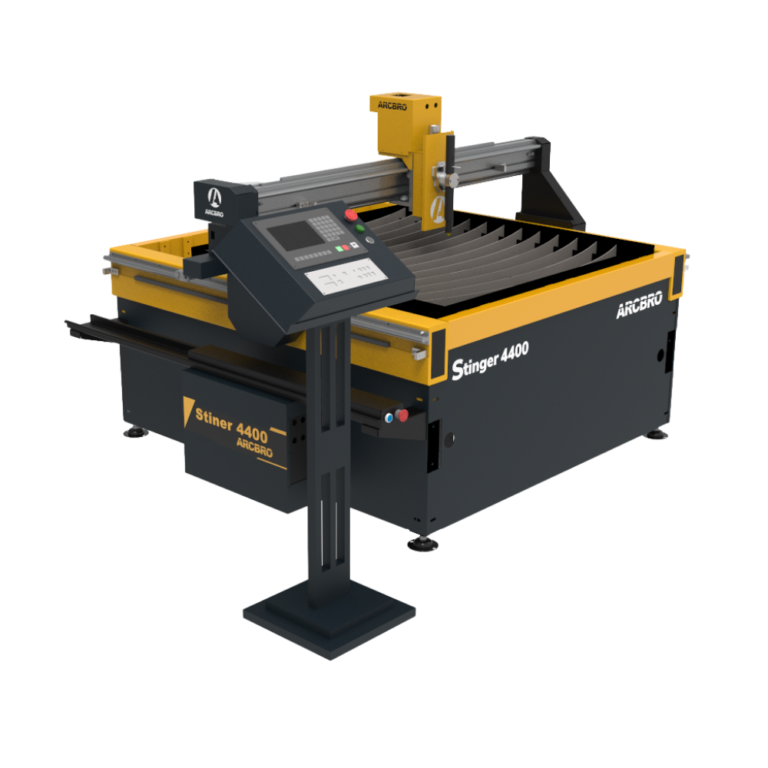

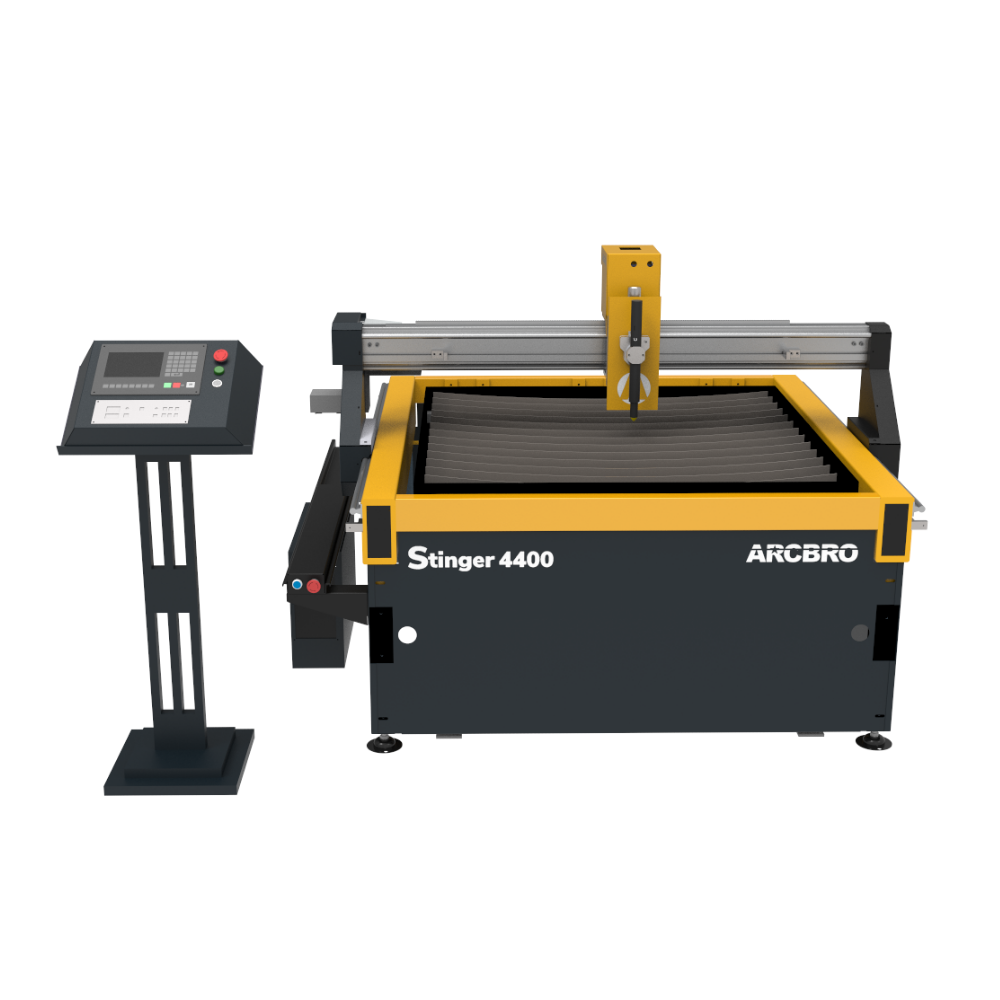

STINGER 4400

CNC Plasma Cutting Table for Workshop

Overview

ArcBro’s stinger 4400 is characterized by better machinery performance, less shipment cost, and longer life. One machine can meet all needs!

And it is completely a plug-and-play machine, Stinger 4400 is shipped fully assembled. The setup process has been streamlined that making the process smooth and enabling you can start to put the machine to work right away.

Standard Features
  • Starfire operating system (SF-2100S)
  • Leisai 57 Hybrid servo motor + HBS57 driver, single motor dual drive
  • HYD Auto Height Control + pneumatic THC
  • Water table, independent design
  • Libellula software
  • Optical axis guide and V-wheel, synchronous transmission on both sides

THE MOST DECENT, COMPACT CNC PLASMA CUTTING TABLE,
WITHIN THE CUTTING RANGE OF 4 * 4 FT.

Better Machinery Performance

The cutting speed of 10m/min means unparalleled production efficiency. The unique belt conveyor design can reduce the resonance frequency by 50%, making the cutting as smooth as butter.

Our machines adopt the standards of the United States and European countries. After machining and heat treatment in the machining center, the error caused by manual adjustment like most brands is greatly reduced.

Users in every industry can use this machine to cut any precise metal parts that they want.

img stinger 4400
Save your wallet, Reduce 50% shipping cost!

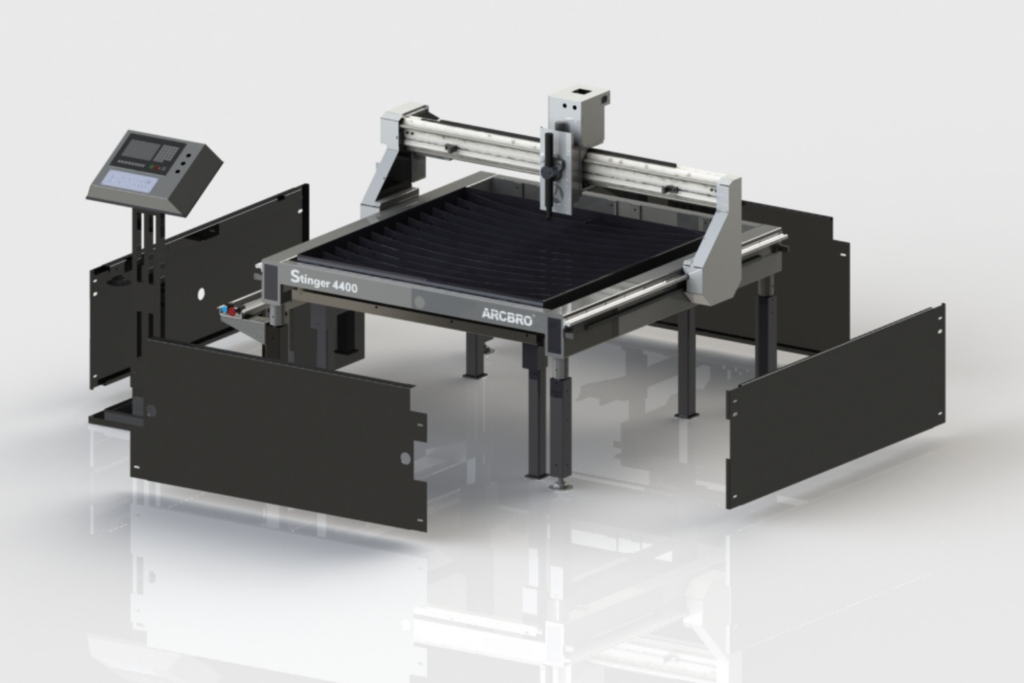

Special design of our machine legs can be disassembled, saving space and reducing the height of the packing box, So help you reduce the shipment cost by 50%.



Long Life & Low Maintenance

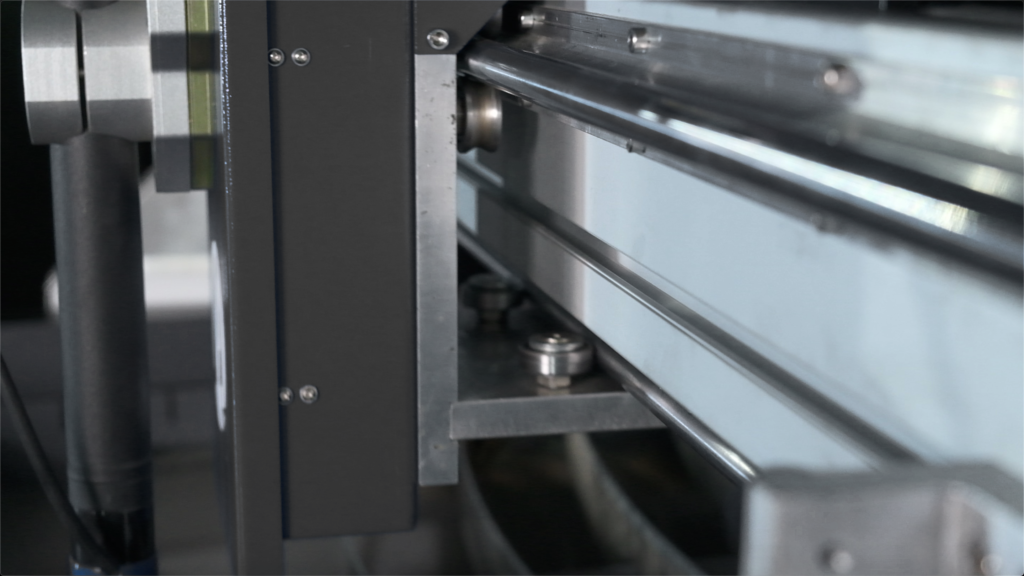

Plasma cutting cannot avoid a large number of dust and iron filings. The square rails need a perfect cutting environment, otherwise the slide block will break quickly. Most importantly, slide block is costly. The advantage of V wheels is to ensure the same accuracy, not only more durable, but also easy to clean. At the same time our machine has an independent bearing platform.Due to the complex working conditions in the factory, the cutting table will cause deformation and lose cutting performance when loading thick plates. But our machine will not have this situation. Even it is crushed, no any influence on machine performance.



TECHNICAL INFO
TypeStinger 4400
Effective Area (mm)1300*3000mm
Thickness Range0.3~30mm (Depends on plasma power source capability)
Input VoltageSingle phase, 110/220V
Power Frequency50/60Hz
Cutting ModePlasma Cutting (Flame is optional)
Driver MotorHybrid servo drives
Cutting Speed1~8,000mm/min
Tolerance<0.4mm
Height ControlArc Voltage THC& Pneumatic THC (capacitive CHC is optional)
Internal LibraryShape library
LanguageEnglish, Chinese, Spanish, Russian, French, Japanese, Czech and Slovenia, etc.
Temperature1-40°C (34-104°F)
