ARCBRO Voyager, Heavy Duty, Military Quality!

  • The ARCBROVoyager available cutting width standard : 1,800mm ( 2,200mm)
  • Available cutting length standard : 2,500mm ( add 500mm for one unit, max as 15,000mm )
  • Recommended cutting width 1,800mm
  • Oxy-Fuel and Plasma cutting
  • Compact, Light weight, easy to use and set up
  • It can cut any figures unless you can design using Auto CAD
  • Be used directly on the plate to be cut or mounted on a cutting table
  • Motorized torch riser allows torch adjustment from controller

voyager2

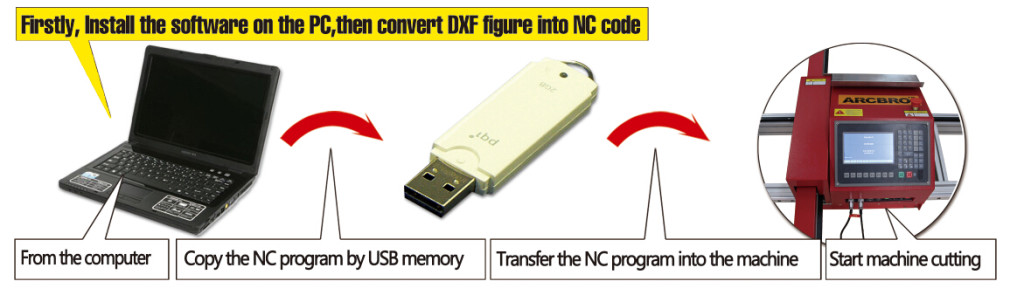

Through USB Port !Input and output the NC program simply.

After equipping with the air plasma power source, such as Hypertherm,Kjellberg,Thermadyne. ArcBro Portable CNC cutting machine will have high speed and top precision cutting performance.

CNC CONTROLLER:

ArcBro Voyager integrates a completely new version of CNC controller with many new features:

  • High Memory for Users’ Programs
  • Colorful Screen, high resolution
  • Built-in Library of Commonly Used Figures
  • Break-point & Power-cut Restoration
  • Returning to Reference Point
  • Kerf compensation
  • Revolving
  • Mirror image

ADVANCED WIDTH RAIL:voyager3

The frame is wider with high-quality racks, up to 420MM, which makes the cross beam move more stably and keep high precision.

The cutting head will not bend even up to 2.0M for the beam.

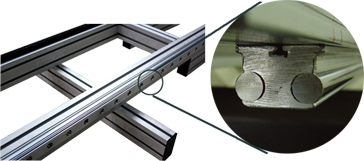

ADVANCED GUIDING RAIL:

The machine body guiding rail keep the endurable dual axises slidingrails ,while we want to the beam more stable ,ArcBro Voyager CNC Cutting Machine, the beam guiding rail change into the best precision linear style .The precision linear guide is only be used on the Precision Bigger Gantry machine ,like Koike, Messer and so on. The introduction of guiding rail in the XY-axises of the machine, enables a more stable movement of the crossbeam and avoids the cutting head from declining.

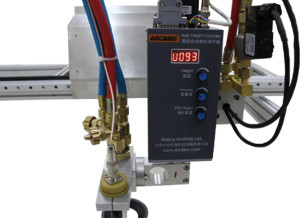

NEW STYLE AUTO HEIGHT CONTROLLER:

The new auto height controller support the flame and plasma cutting both, and through the three button,you can adjust the cutting performance easily.Voyager2
