Overview
< Scout | Standard Features >

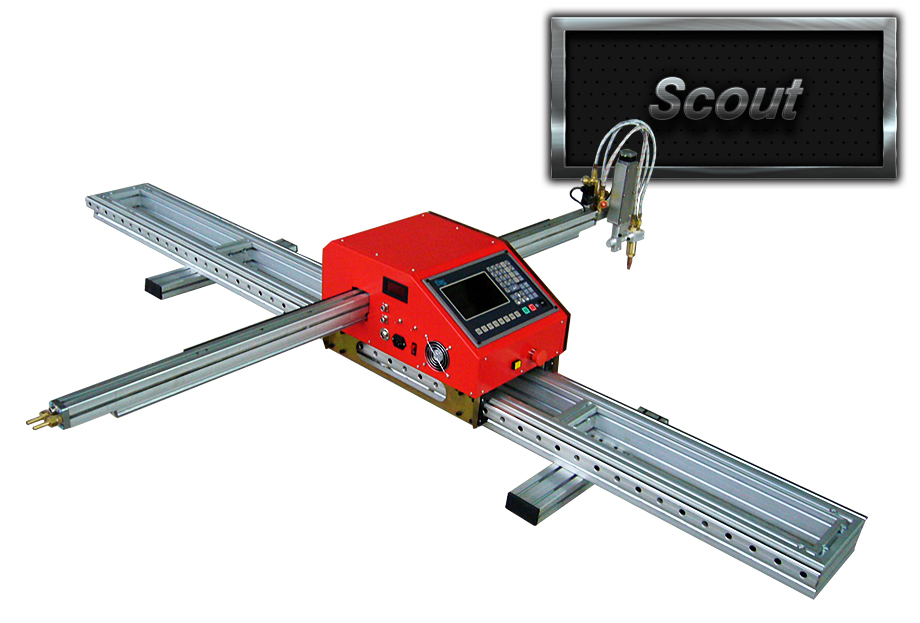

The Most Economical CNC Cutter, Stablest!
- The ArcBro-Scout standard cutting area is 1,200X2,000mm
- Max cutting area can reach 1,500X15,000mm
- Recommended cutting width 1,500mm
- Oxy-Fuel and Plasma cutting
- Compact, Light weight, easy to use and set up
- It can cut any figures unless you can design using Auto CAD
- Be used directly on the plate to be cut or mounted on a cutting table
- Motorized torch riser allows torch adjustment from controller
CNC CONTROLLER:
ArcBro Scout integrates a completely new version of CNC controller with many new features:
- High Memory for Users’ Programs
- Colorful Screen, high resolution
- Built-in Library of Commonly Used Figures
- Break-point & Power-cut Restoration
- Returning to Reference Point
- Kerf compensation
- Revolving
- Mirror image
ADVANCED GUIDING RAIL:
X,Y-axises drive mode is optimized for ArcBro Scout. The introduction of guiding rail in the XY-axises of the machine, enables a more stable movement of the crossbeam and avoids the cutting head from declining.
ADVANCED SLIDINGBLOCK:
BEAM STRUCTURE UPDATING:
The New design has the dual sliding blocks to guide the beam, while the old design without. And we also change the material of the wheel, the Steel instead of the Nylon. Because of this, the machine is working more steady and precise than before.
SAFE BUTTON:
This feature allows the user to enable or disable the motors while power is on, guarantee the user’s safety
MAINTENANCE MORE SIMPLE:
Just open the machine cover, you will check the device, and the XY motor, everything become so easier.
MOTOR TORCH AND XY BEVELING CUTTING HOLDER:
Now we have updated the Motor driven Torch instead of the Manual Torch, adjust the torch height using up down button ;
And now we also match the new torch holder, it can support XY beveling cutting both, while the old Manual holder only support Y beveling cut.
Standard Package :
- Transversal Beam
- Cross beam
- Central Unit
- Universal torch holder
- Plasma cable holder
- Nozzles for propane cutting torch
- All necessary electrical cables
- Memory key
- SigmaNEST Companion™ Cutting Software
- User’s manual in English/Spanish
- Motorize torch controller
- Auto Height Controller for flame and plasma (Optional)
Specifications
| Rated Power | 180W |
| Gross Weight | 80.5KG |
| Cutting Capacity(Flame) | 6mm~150mm |
| Effect Cutting Range | X-Axis: 1,200mm, Y-Axis: 2,000mm, Z-Axis: Auto sensing or Motor Driver |
| Cutting Mode | Flame or Plasma |
| Compulsive Gas | Oxygen |
| Compulsive Gas Pressure | Max. Pressure: 1.5MPa |
| Cutting Speed | 0~600mm/min(Flame), 0~6,000mm/min(Plasma) |
| Working Voltage | 220V AC/110V AC, 50/60Hz |
| Torch Height Control | AVC for Plasma; Mechanical THC for flame |
| CAM Software | Fast CAM / MTC / IBE |
| Warranty | Full 1 year warranty on electronics, parts and software;
Lifetime unlimited free technical support |
