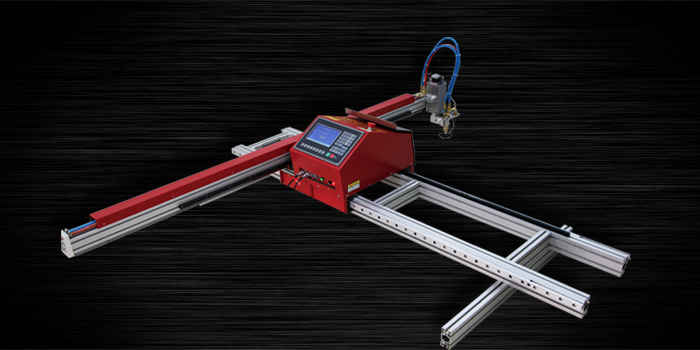

VOYAGER PORTABLE CNC CUTTING MACHINE

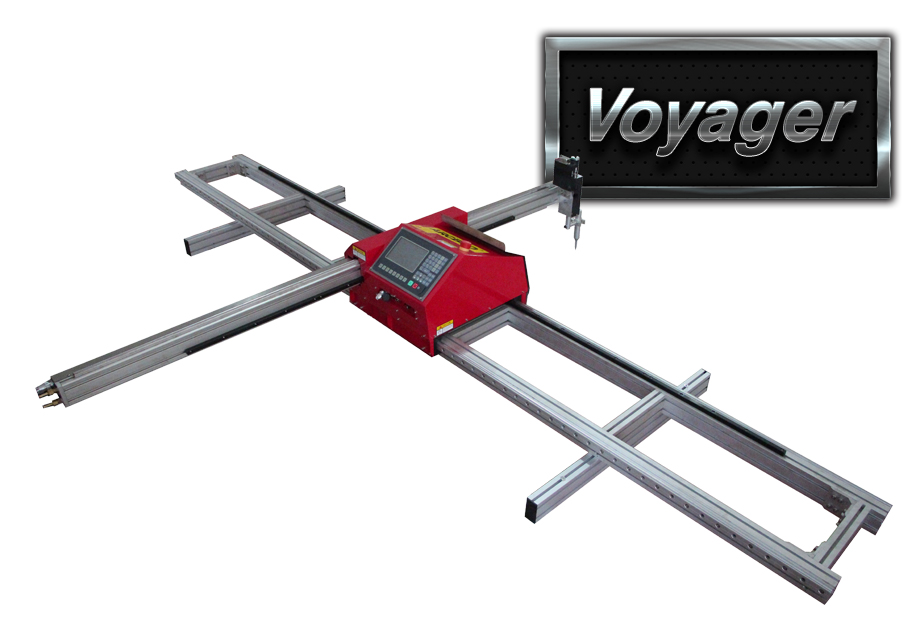

ARCBRO Voyager Portable CNC Cutter

Overview

 < Voyager | Standard Features >

  • The ARCBROVoyager available cutting width standard : 1,800mm ( 2,200mm).
  • Available cutting length standard : 2,500mm ( add 500mm for one unit, max as 15,000mm ).
  • Recommended cutting width 1,800mm.
  • Oxy-Fuel and Plasma cutting.
  • Compact, Light weight, easy to use and set up.
  • Any figures designed by Auto CAD can be cut.
  • Be used directly on the plate to be cut or mounted on a cutting table.
  • Motorized torch riser allows torch adjustment from controller.

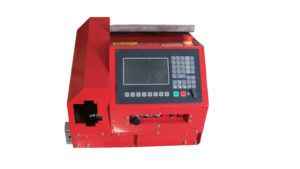

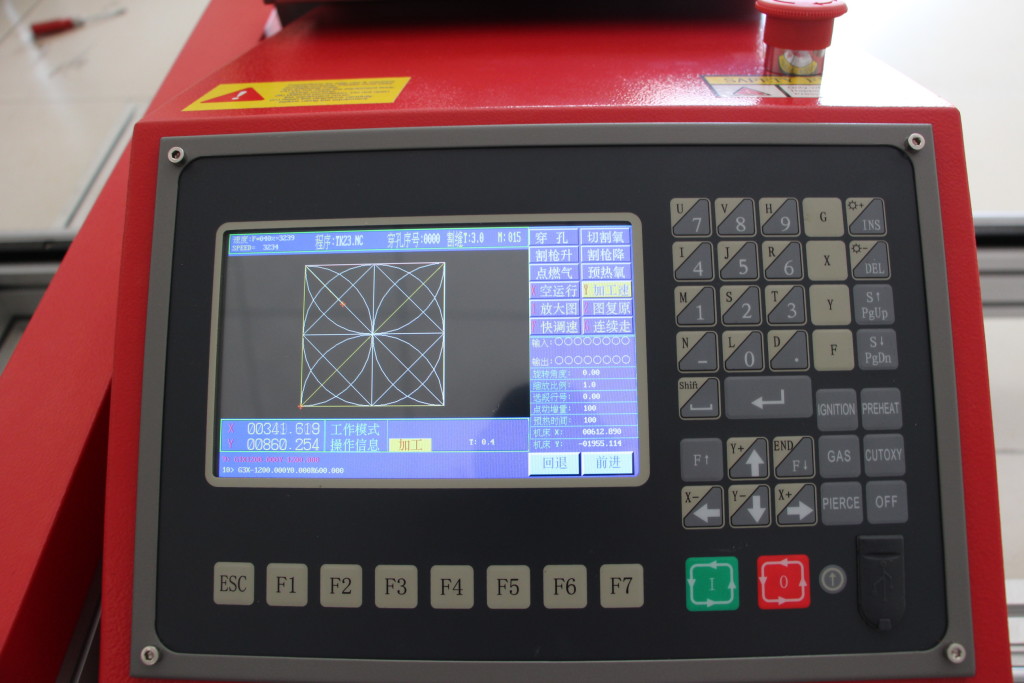

CNC CONTROLLER:

  • ArcBro Voyager, have the Servo / Step motor Optional
  • High Memory for Users’ Programs
  • Colorful Screen, high resolution
  • Built-in Library of Commonly Used Figures
  • Break-point & Power-cut Restoration
  • Returning to Reference Point
  • Kerf compensation
  • Revolving
  • Mirror image

IMG_8487

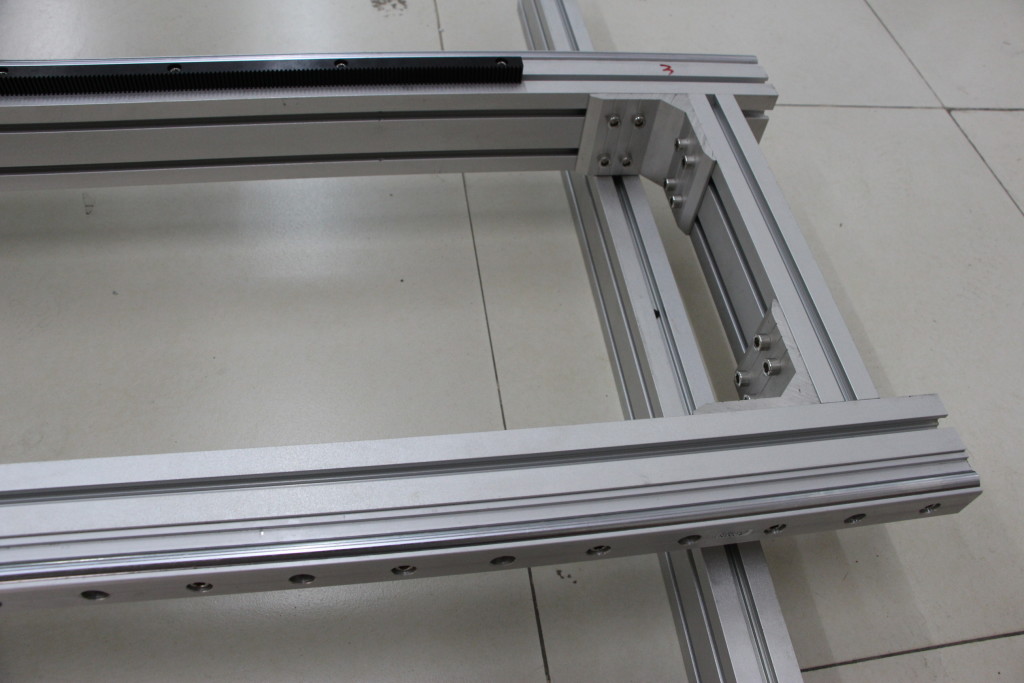

ADVANCED WIDTH RAIL:

The frame is wider with high-quality racks, up to 420MM, which makes the cross beam move more stably and keep high precision. The cutting head will not bend even up to 2.0M for the beam.

IMG_8459副本

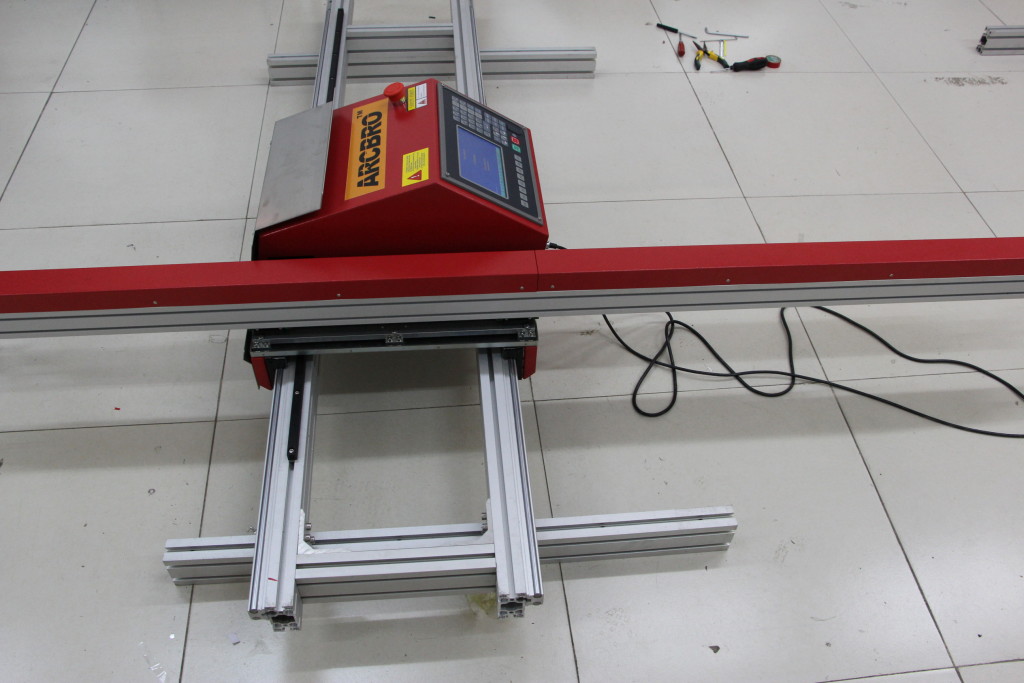

ADVANCED GUIDING RAIL:

The machine body guiding rail keep the endurable dual axises slidingrails ,while we want to the beam more stable ,ArcBro Voyager CNC Cutting Machine, the beam guiding rail change into the best precision linear style .The precision linear guide is only be used on the Precision Bigger Gantry machine ,like Koike, Messer and so on. The introduction of guiding rail in the XY-axises of the machine, enables a more stable movement of the crossbeam and avoids the cutting head from declining.

IMG_8454副本

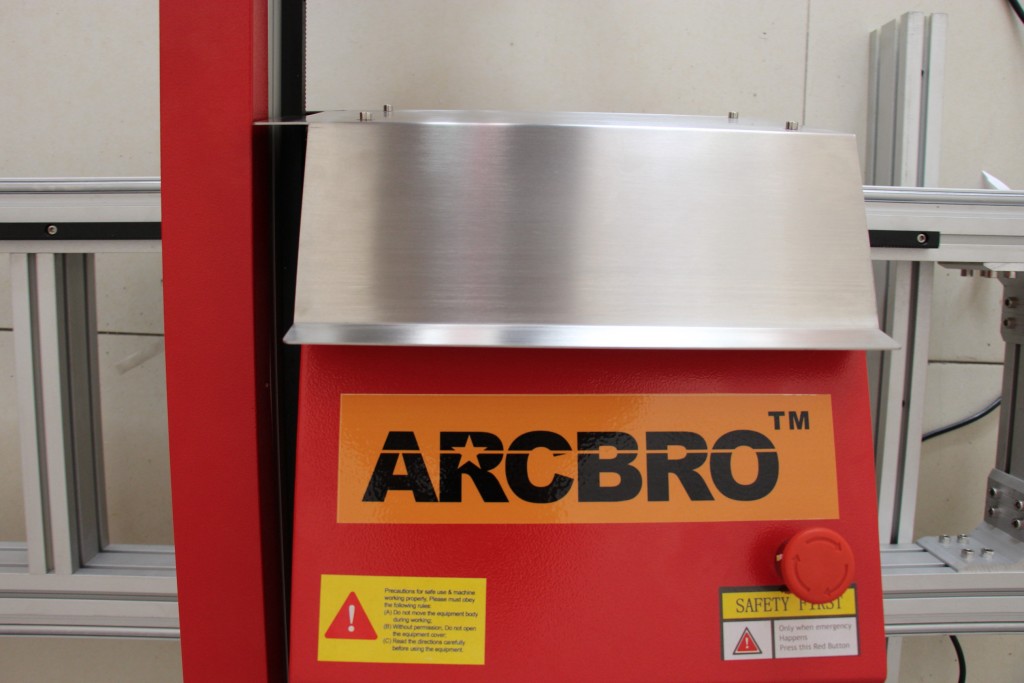

SAFE BUTTON:

This feature allows the user to enable or disable the motors while power is on, guarantee the user’s safety

IMG_8508

RACK UPDATING:

We use 15X15X505.5 rack for ArcBro Voyager .it is much stable than others .

IMG_8504

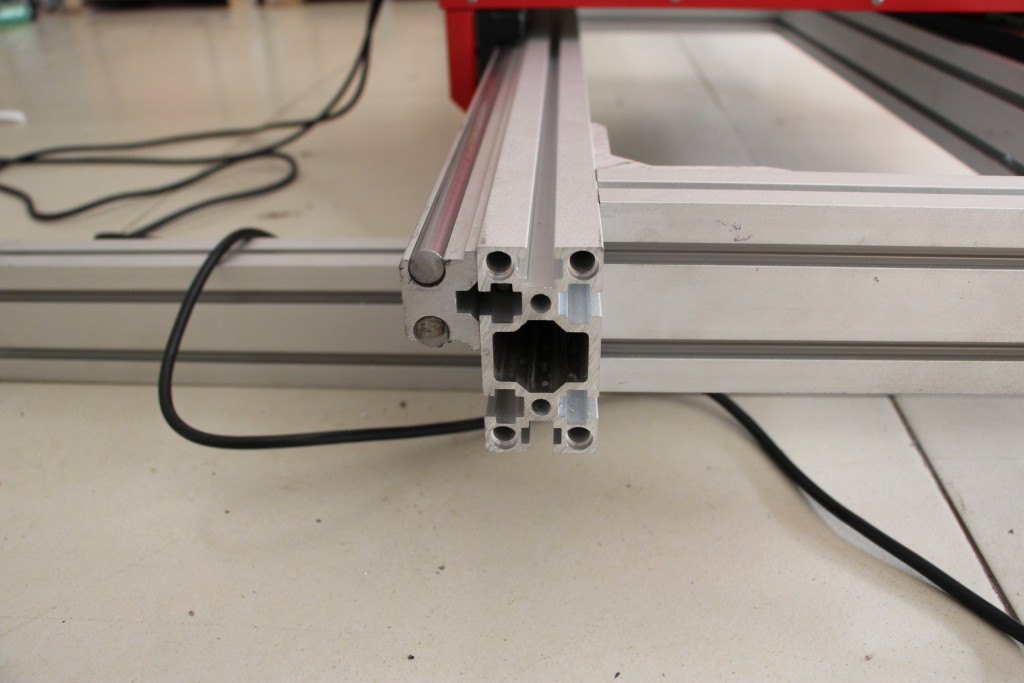

EXTRA STRONG RAIL FIX:

Strengthen base is used, and more stable !

Standard Package:

  • Longitudinal rails frame
  • Transversal Beam
  • Cross beam
  • Central Unit
  • Universal torch holder
  • Plasma cable holder
  • Nozzles for propane cutting torch
  • All necessary electrical cables
  • Memory key
  • Auto Nesting Software
  • User’s manual in English/Spanish
  • Auto Height Controller for flame and plasma

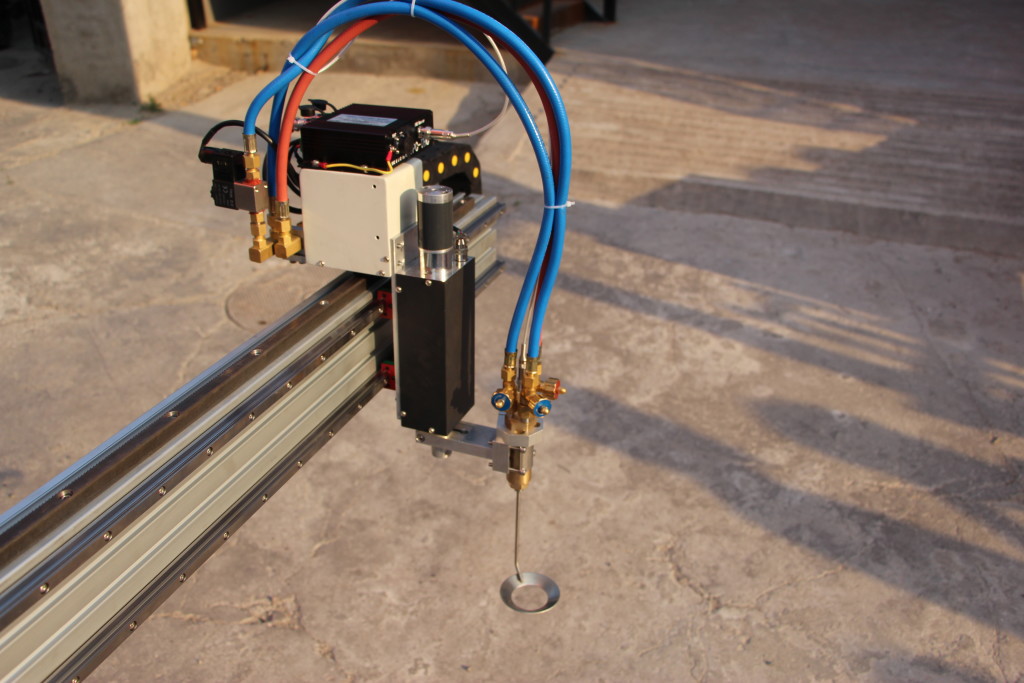

ACRBRO NEW THC:

IMG_1171-1024x683-1

Specifications

Technical Parameters:

Rated Power 180W
Electric Power 220AC/110AC, 50/60HZ
Effective Cutting Range

Standard Size: 1.5m x 3.0m

Customized Size:       Width: 1.5m, 1.8m, 2.0m

                    Length: 3.5m, 4.5m, 5.5m … 15.0m

Standard 1.5m x 3.0m Machine Net Weight : 130KG
Gross Weight : 180KG
Packing : In 2 plywood boxes

Cutting Parameters :

Mode Of Cutting
Cutting Speed Plasma Flame
Cutting Thickness 0~8,000mm/min 0~1,000mm/min
Cutting Thickness Depending on the plasma power source 6mm~250mm, using the special torch
Torch Height Automatic voltage sensing THC
Compatibility Favorable all major brands plasma Built-in oxy-fuel torch with propane nozzle(acetylene nozzles can be provided on request)

Sample Video

https://www.youtube.com/watch?v=wRVYpdDl1cg

Download

Click PDF to save Brochure:
