ELF

20W/30W/50W Fiber Laser Marking Machine

Overview

ELF is the latest laser marking machine launched by ARBRO. It has reliable quality, a wide range of materials that can be applied, and high engraving accuracy, which can meet all the requirements of laser engraving. machine for every professional workshop own.

Main Configuration

20W Raycus QE Laser Source 100*100MM marking area

High Speed Beijing Sino-Galvo Scan Head Focus lens imported from Singapore Beijing JCZ Control Board

EZCAD Software (compatible with your own software) Double Red Dots for Easy Focus

CLICK HERE TO REQUEST A QUOTE!

Advantage

Desktop laser engraving and marking machine

ARCBRO CX20 Laser Marking Machine
Rocket speed, industrial grade efficiency
Engraving multiple materials in one machine (metal/plastic/wooden board/acrylic/ceramic)

Machine Details & Photos

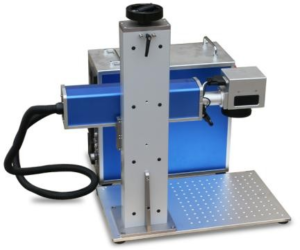

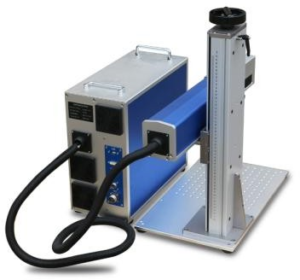

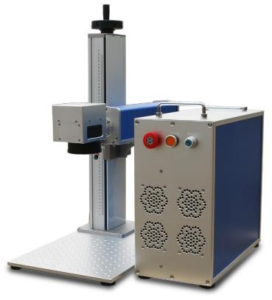

Machine Photo	Side View of the Machine	Back View of the Machine

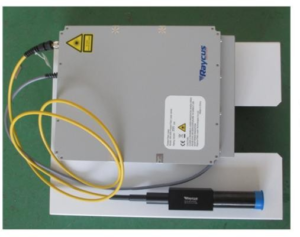

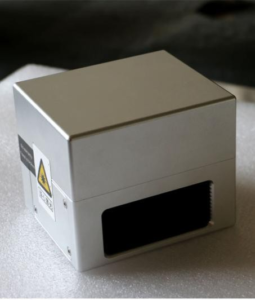

Max Laser Source	Beijing JCZ Controller	Scan Head

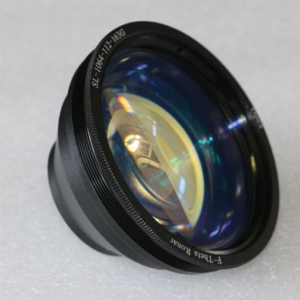

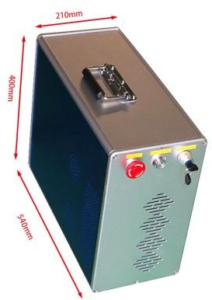

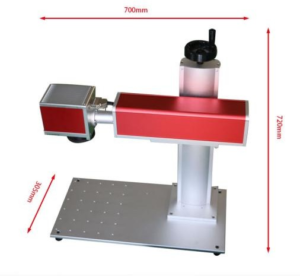

Focus Lens	Dimension of the Machine	Dimension of the Machine (1)

Standard Parts for the Machine
LENOVO LAPTOP	Optional (NOT FREE)	POWER CABLE	1 SET
RULER	1 PCS	USB CABLE	1 SET
TOOLS	1 SET	PEDAL SWITCH	1 SET
Test card	1 SET	Warranty Card	1 PCS
Rotary Attachment	Optional (NOT FREE)	Dongle	1 PCS

Accessories and Package

Three advantages !

speed：
Smart engraving does not take the vacant position
Take you to experience the printing speed like a rocket
Meet the needs of batch printing
When engraving, the software automatically adjusts the printing order, does not go to the empty position, and increases the printing speed screen, best operation experience.

Precision：
Use high-end industrial grade lasers
Engraving positioning accuracy reaches ±0.01mm

software：
ARCBRO develops laser engraving software
Can complete picture layout positioning
One-key red light predicts the laser position, one-click engraving and marking.

Detailed Parameters
Effective Working Area	(X=100mm)*(Y=100mm)
Laser Power	20w
Worktable	Fixed
Wave Length	1064nm
Laser Frequency	20~100KHz
Computer System	WINDOWS XP/Win7/Win8
Minimum Character	0.15mm
Max Marking Depth	1mm (based on different laser power and material)
Minimum Linear Width	0.01mm
Cooling way	Air Cooling
Maxi Marking Speed	7000mm/s
Data Transfer:	USB2.0 transmission
Control System	EZCAD Offline Controller
Graphic Format Supported:	AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Compatible Software	CorelDraw, AutoCAD,Adobe Illustrator, etc
Total Power	500W ( AC220V 50Hz /AC110V 50Hz)
Package Weight	50KG
Package Size	795430820mm
