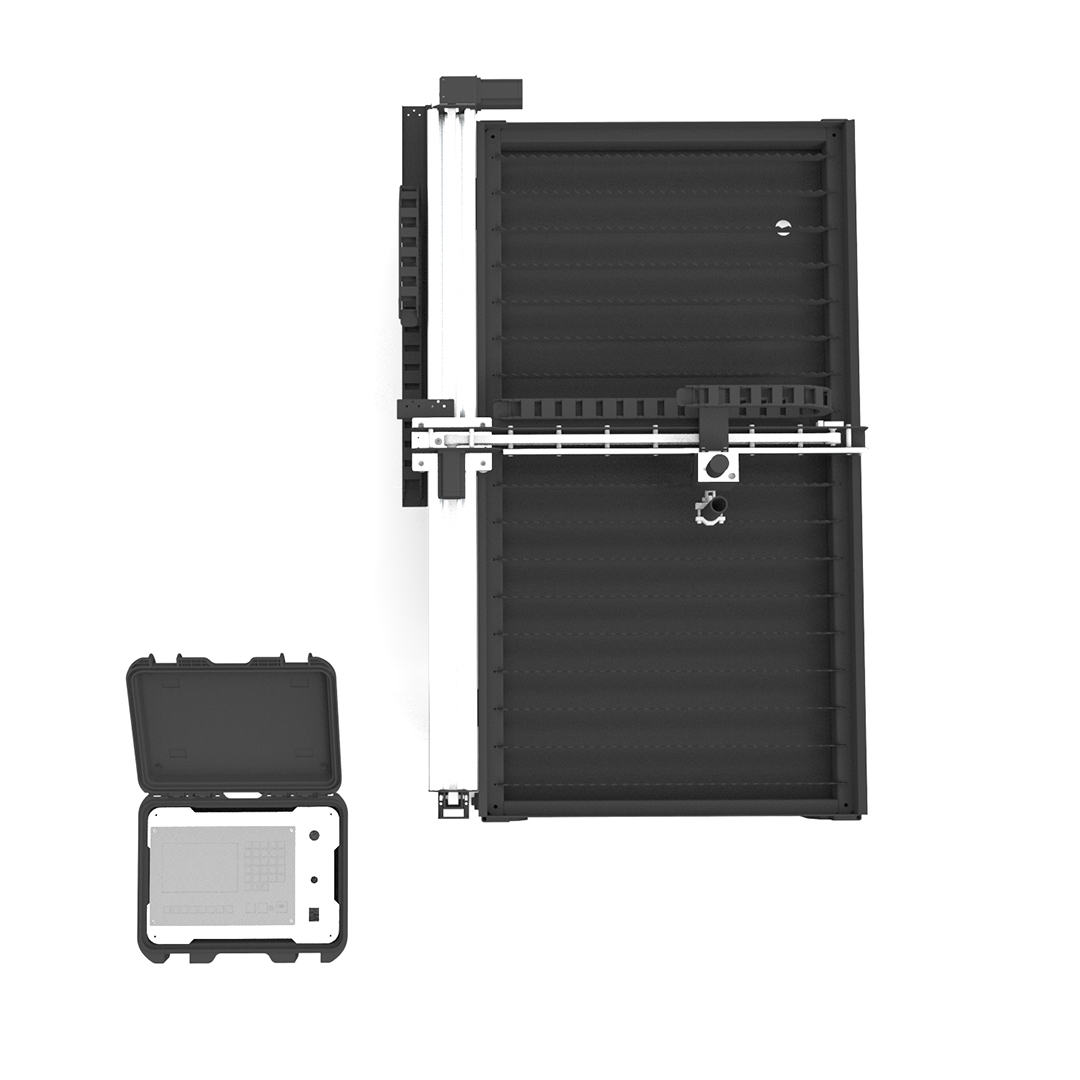

SPARK 6060/60120
COMPACT, SMART, AFFORDABLE. Upgrade your work with the Spark CNC plasma table! Perfect suit for DIYer or shop owner who doing metal work at home/workshop/garage.
Videos for Machine
Spark60120 Working & Testing
Spark6060 Working Demo
Spark60120 Working & Testing
Spark6060 30s Demo
Spark6060 How to Install
Spark60120 How to Install
SPARK is a personalized metal production tool, specially designed for small metal cutting. It meets all needs of metal artists, DIY craft lovers and automotive parts of workshop.

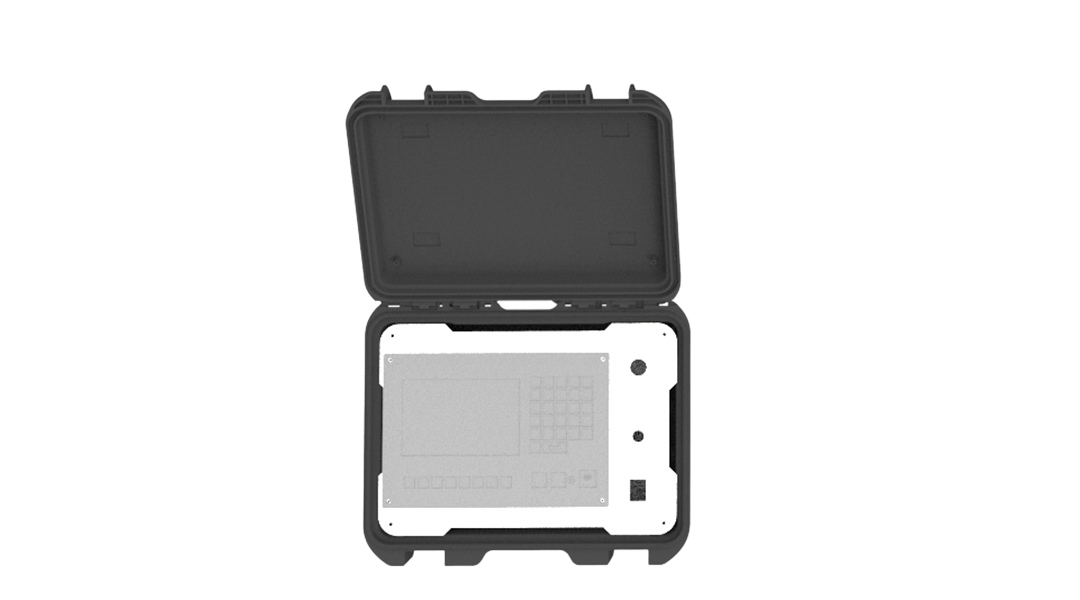

Easy operation. SPARK control system comes with graphics library. Cut 45 kinds of graphics with one button. And customized graphics can be imported with usb.
NO NEED ADJUSTMENT！
Cut your digital inspirations faster and more smooth, because SPARK has Ball Screw Transmission in Y axis, and Belt Transmission in X axis. They are both good to minimize machine vibration in cutting. To promise good cutting surface.

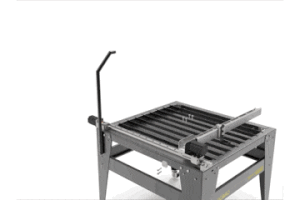

The installation of SPARK is very simple, you can refer to the picture on the left, plug&play！
Full-Featured personal plasma cutting machine, special design meet all needs of metal art cutting. The ultra foldable structure, the volume after folding is only 1100*500mm, which is compact enough to be easily stored in any corner when not in use.
| Type | SPARK |
| Effective Area (mm) | 600*600mm / 600*1200mm |
| Machine Size | 870*920mm / 920*1470mm |
| Power Frequency | 50/60Hz |
| Cutting Mode | Plasma Cutting |
| Driver Motor | Smart Step Drives |
| Running Speed | 1~6,000mm/min |
| Input Voltage | Single Phase, 110/220V |
| Tolerance | <0.2mm |
| Shape Libray | Yes |
| Temperature | 1-40°C (34-104°F) |
| Language | English, Chinese, Spanish, Russian, French, Japanese, Czech, and Slovenia, etc. |
The cutting size of SPARK is 600*600mm.
Yes, SPARK's cutting range can be extended to 600*1200mm.
-Control System
-Motor
-Drive
-Power Supply Box
-Control Box/Control Cabinet
-Instruction Manual/Synopsis
Depending on the amperage of the plasma power source, it is recommended to be used with a handheld plasma power source.
12-month warranty.

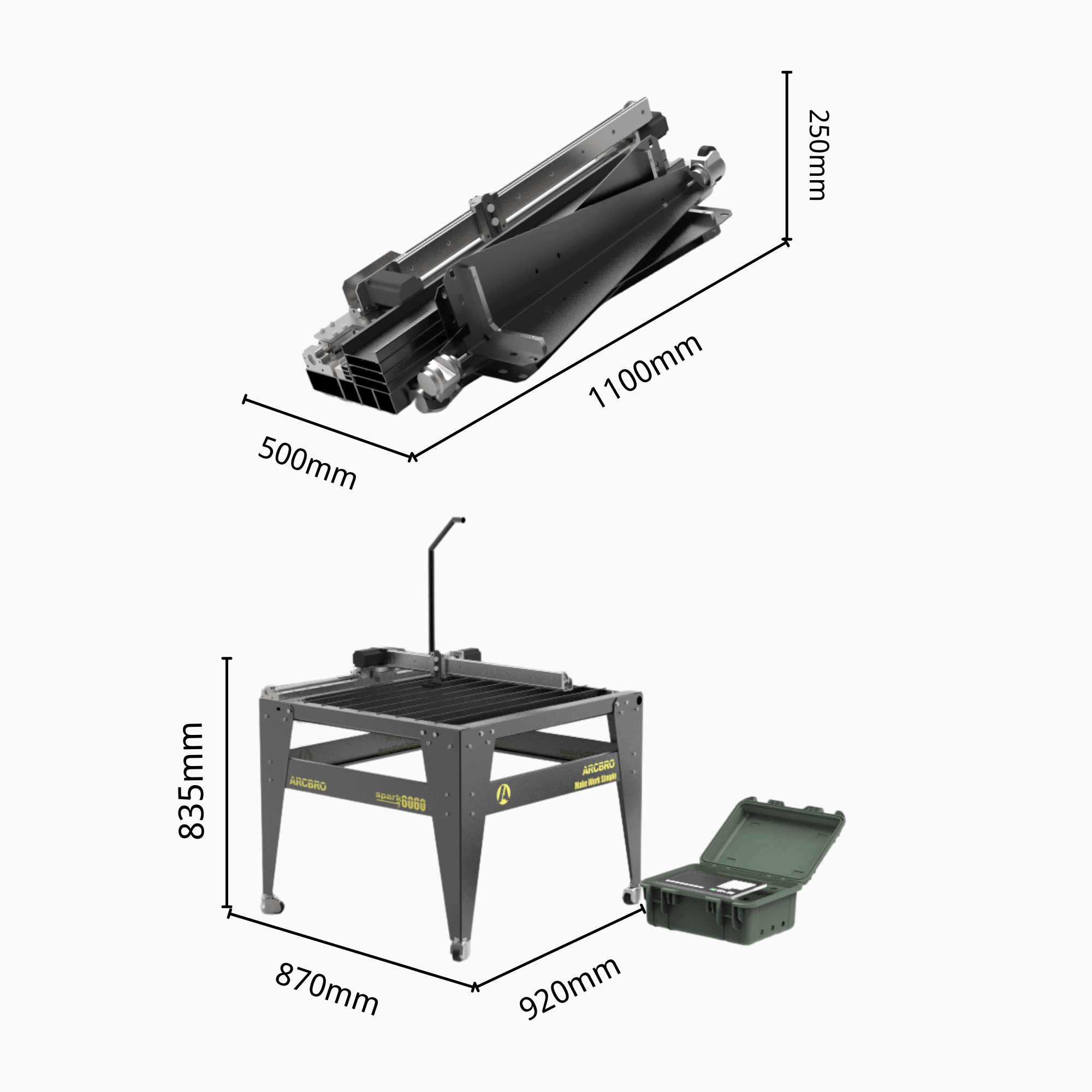

The package size is only 1100*500*250mm.
Please send us the address you want to ship to, and we will send you the detailed shipping cost according to the address.
SPARK is easy to install and has no adjustments. Please check the video to learn more about SPARK installation.

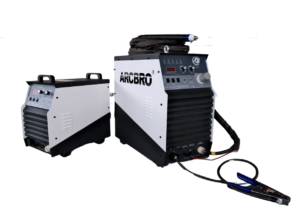

We recommend using Arcbro's Aircut60A plasma power source. The powerful and ready for CNC plasma cutting tables.
Specially designed for SPARK, please stay tuned！ Only $399!
If you have any other questions, please don't hesitate to contact us, there will be professional engineers who will reply to your questions in time.
Email Us：info@arcbro.com
Phone & Whatsapp: +86-17610780535
Plasma Power Source
Aircut 60 A
Specially designed for SPARK, please STAY TUNED！
Only $399!
