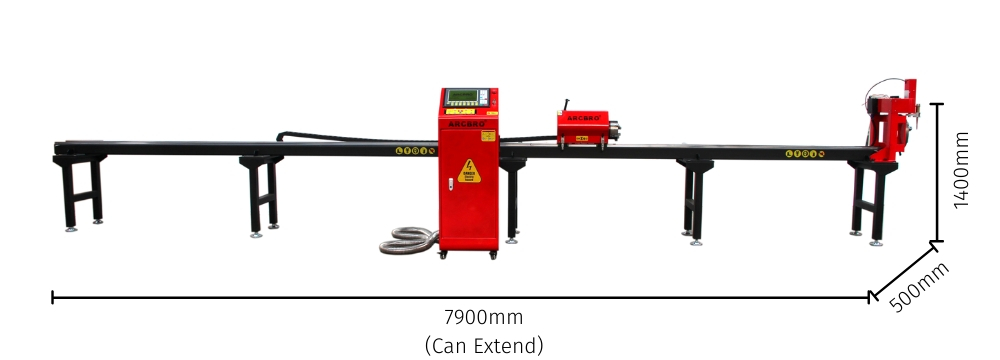

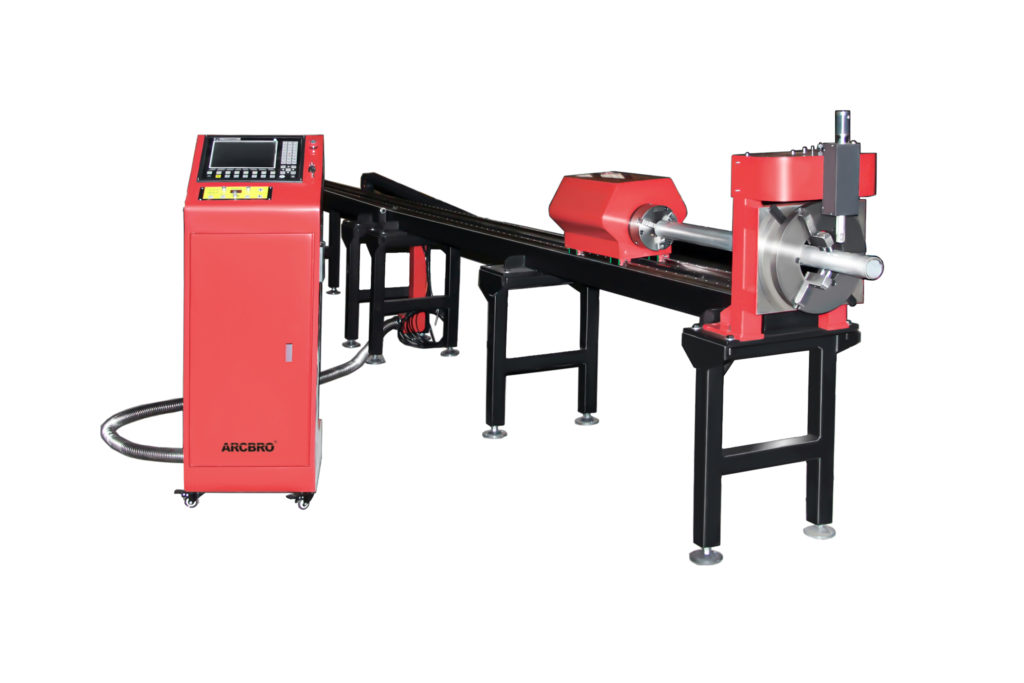

The Tube-S by ARCBRO® is an affordable CNC round and square pipe cutting solution that comes in a compact footprint.  It can do pipe OD from 30 to 120 mm and pipe length from 3000 to 15.000 mm by plasma. This two-axis CNC pipe cutting machine has a footprint of only 0.6m wide and can rapidly profile aluminum, stainless steel, and mild steel pipes with ease. User powerful and friendly Italy libellula software allows quick understanding and efficient use of Tube-S machines after a short training. NC data file transfer to Tube-S from CAD/CAM software available as an option.

1, Advancing and stable motion control

• Open bed design with two chucks equipped with universal balls on a concentric circle. This design achieves the most accurate and stable motion control of the longitudinal and rotary axes.
• Automatic Arc Voltage Height Control adjusts the torch distance during cutting to profile the pipes and compensate for pipes that are out of round.

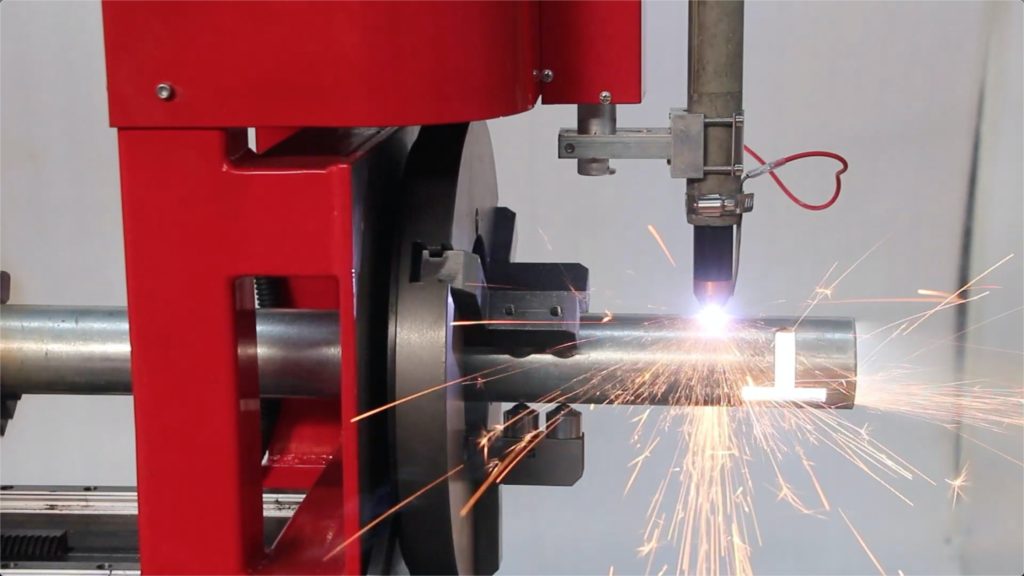

2, Top cutting quality

• Optimal cutting torch paths calculated by the TUBE-S control system ensure extremely accurate weld preparation.
• Advanced design and top quality components enable fast and efficient cutting with top-quality results.
• After experimental measurement, the cutting tolerance is less than 0.3 with a Panasonic high-quality servo motor, which can meet the tolerance requirements of all complex workpieces.
