Spark Pro
SMALL CNC PLASMA CUTTING TABLE

Overview

The CNC plasma cutting machine, Spark Pro, has a very lightweight structure. The total weight is just 200kg, but it is in a higher working size. And it is also higher configured with THC for plasma cutting. It is a very good choice for the studio and for the university and for smaller workshops.

If you have such a working scene, for small parts production, furniture decoration, or any other metal works, stop outsourcing your cutting needs and put a production-capable machine in your shop at a fraction of the price. COMPACT, SMART, AND AFFORDABLE. Spark Pro takes its advantages to the limit.

CLICK HERE TO REQUEST A QUOTE!

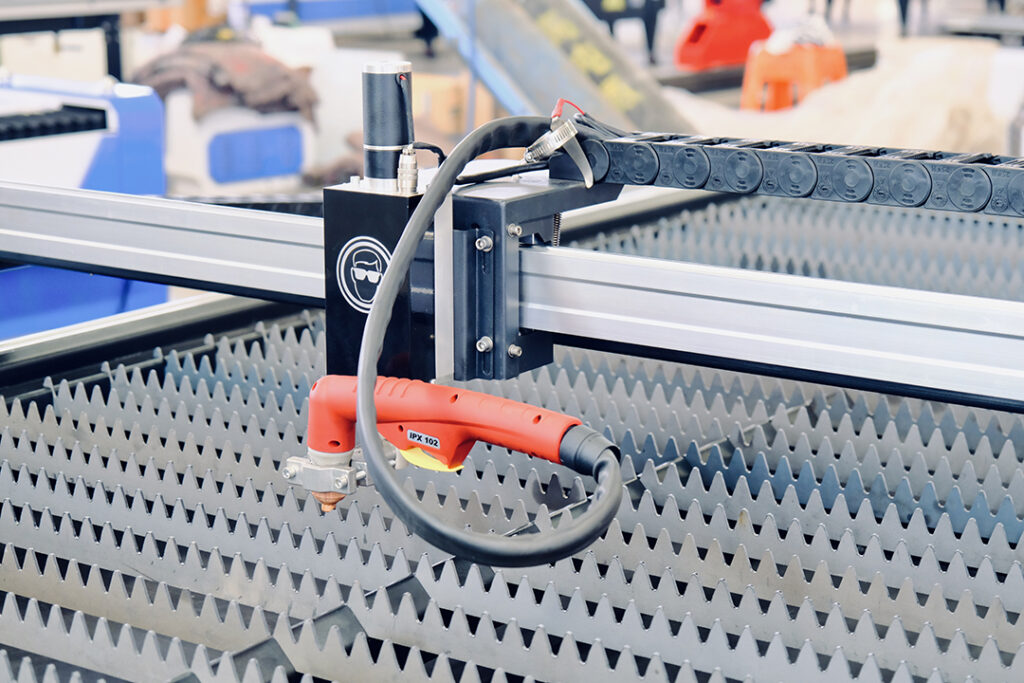

The touch lifter is very small with a stroke of 50 millimeters.
The aluminum cross beam is a modular aluminum technique.

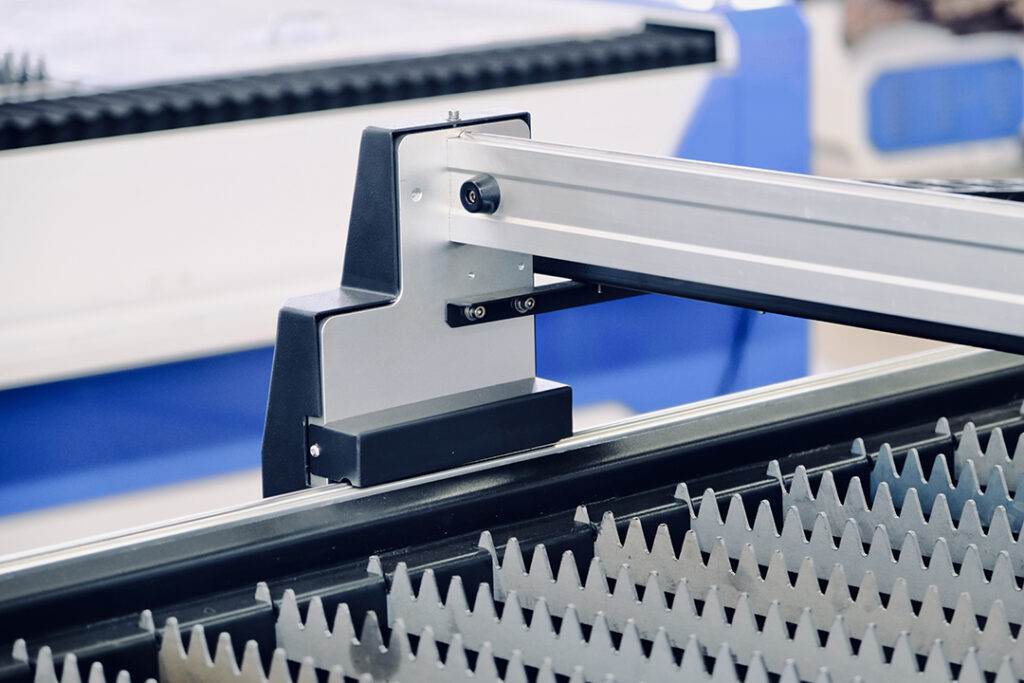

The V wheels you can see, it’s a V wheel clamping Structure for the y-axis, easy to clean and durable.
And Spark Pro has three elastic motor engagements, it is a very soft connection for the gear and racks and can promise smooth running in cutting.

Integrated Controller

This controller has already integrated the THC part. Easy operation, all plugs are simple Plug-and-Play. Spark Pro control system comes with a graphics library. Cut 45 kinds of graphics with one button. And customized graphics can be imported with USB.

Compact Solution

Spark Pro has a compact structure, and its total weight is just 200kg. But it is in a higher working size, and it is also higher configured with THC for plasma cutting. So it can be placed more perfectly in the work area and meet your cutting demands.

TECHNICAL INFO

SPECS

Model	SPARK PRO
Effective Area(mm)	1200*1200mm
Machine Size	170015051060mm
Input Voltage	220V single phase / 110V single phase
Power Frequency	480W
Cutting Mode	Plasma cutting with Automatic Height Control
Driver Motor	Step Motor x 3
Running Speed	12000mm/min
Tolerance	Cutting tolerance smaller than ±0.3mm
Shape Library	Yes
Temperature	0 to 40℃

Application scenario of Spark Pro

The Spark Pro features a production-ready 1200*1200mm cutting area, so you can cut more parts faster. Powered Z-axis with Initial Height Sense, reinforced steel frame w/ integrated stainless water table, and Automatic Torch Height Control compatibility. Bring industrial capabilities to your shop with a machine that won’t quit.
